The TV's USB port is convenient, limited, and moody
A backlight kit fed from the TV's USB port inherits that port's personality. Ports marked 5V/0.5A struggle to light more than a short run at full white; some ports power down in standby but others do not; and a TV firmware update can change the behavior overnight. A kit that 'died' after months of service very often lost its power source's cooperation, not its own life.
The diagnosis is therefore source-first: prove what the port delivers, cross-test on an independent supply, and only then move down the chain — controller, connectors, and the first segment of strip behind the bezel corner where installation stress concentrates.
Prepare before testing
- A USB power meter or a phone that reports charging wattage — shows whether the port delivers under load
- A quality 5 V USB wall charger (2 A or better) — the independent supply that settles the port question
- Small flashlight and mirror — connectors and the first strip corner hide behind the TV

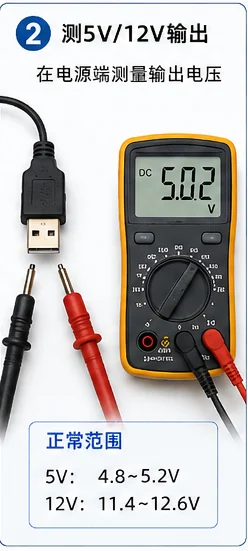

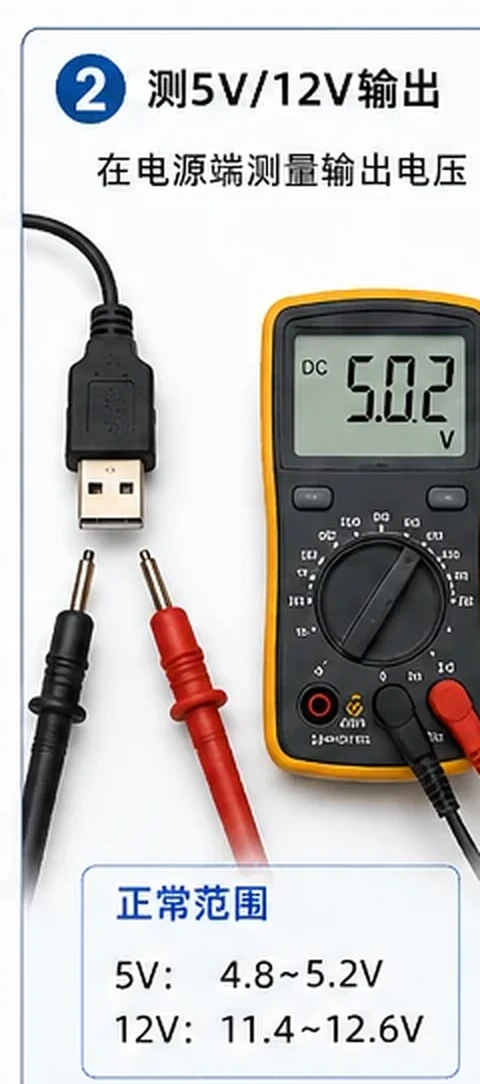

- Multimeter (optional) — for kits with barrel-plug adapters instead of USB
Everything here is extra-low voltage. The only real risk is mechanical — a TV tipped while reaching behind it. Work with the screen supported and cables slack.
Check these areas first
- TV USB port current-limited or asleep. 0.5 A ports brown out long runs; standby policies cut power without warning
- Failed or undersized USB cable. thin charge-only cables drop voltage badly at backlight currents
- Controller box hung or dead. sync boxes and button controllers crash; a 10-second power cycle is their reset
- Connector backed out behind the bezel. the keyed plugs between controller and strip loosen during dusting and cable-tidying
- First-corner strip damage. the tightest fold of the installation cracks pads at the first corner segment

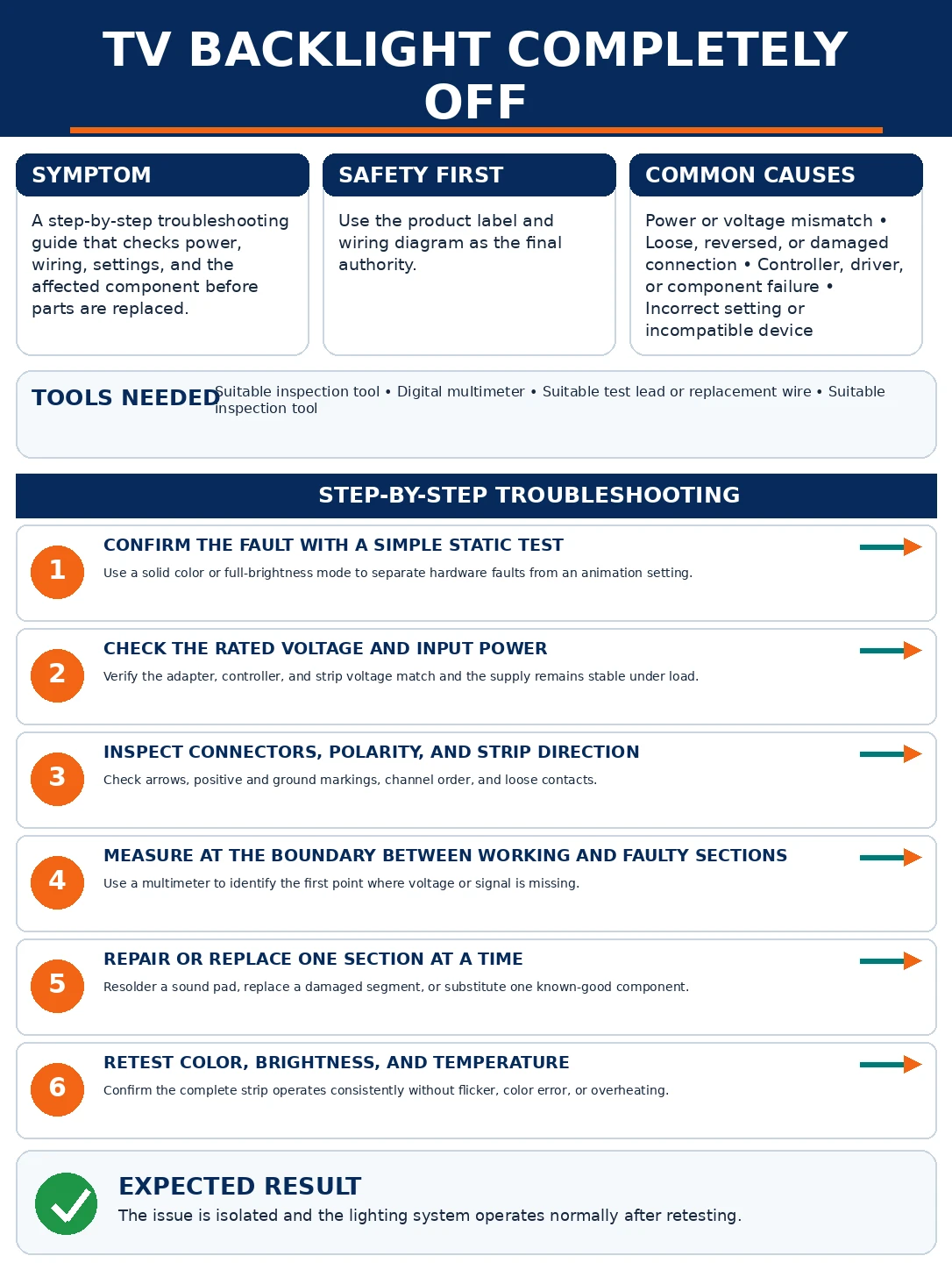

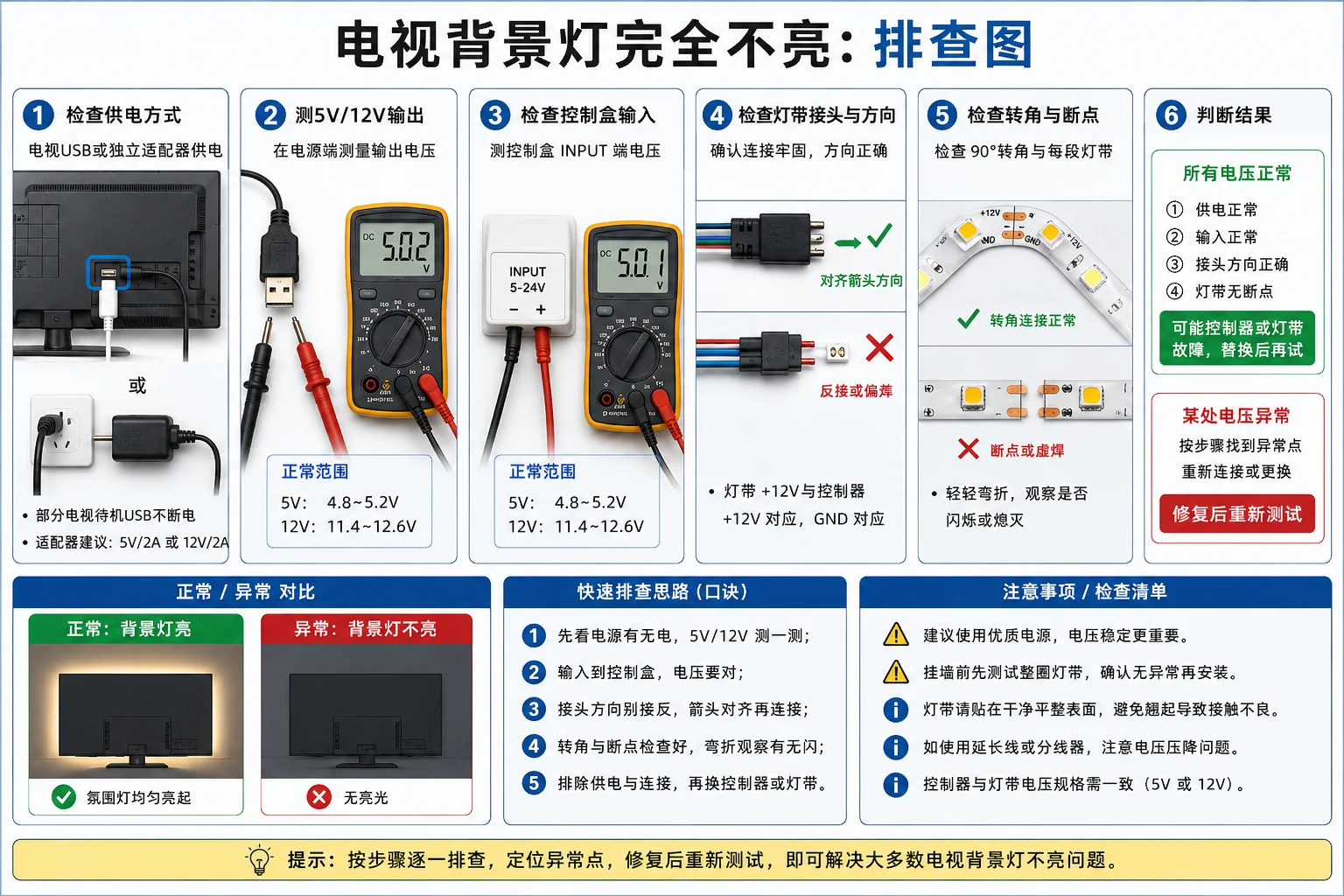

Diagnostic procedure
Source first, controller second, wiring third: the sequence clears the TV's quirks before any part gets blamed.

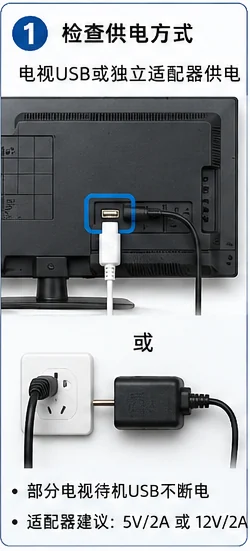

Test the TV's USB port under a real load

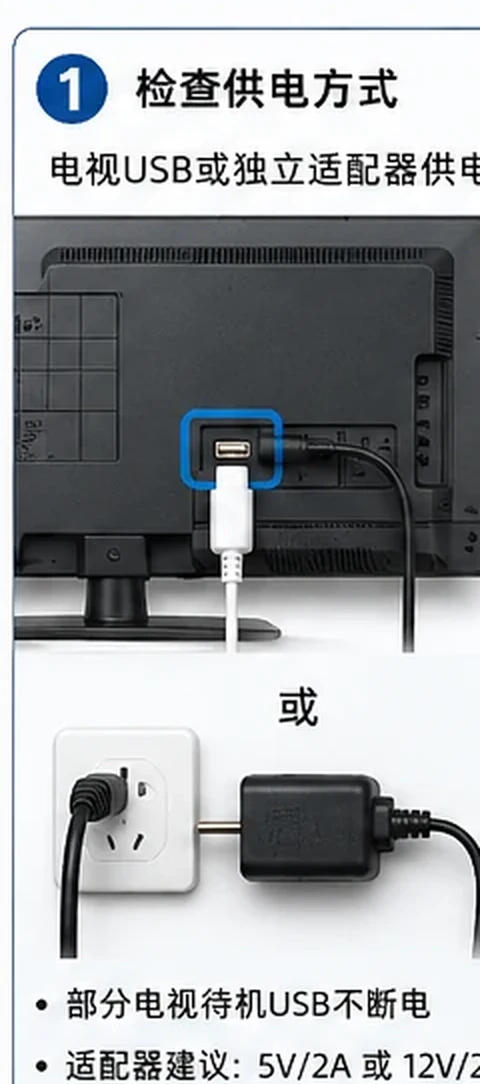

With the TV on, plug a phone or USB meter into the port the kit uses. Note the charge rate: a port that trickles at a fraction of an amp cannot drive a full backlight. Repeat with the TV in standby — many ports cut or halve power there, which is 'the lights die when I turn the TV off' in disguise.
Cross-test on an independent 5 V supply
Move the kit's USB plug to a known-good 2 A wall charger. If the lights return, the kit is healthy and the TV port is the whole story: either keep the wall charger, use a powered USB hub, or accept the port's limits at lower brightness. If nothing changes, the fault is genuinely in the kit — continue down the chain.
Power-cycle and read the controller
Unplug the controller or sync box for a full ten seconds, then repower and watch: an indicator LED, a startup flash on the strip, an app that shows the device online. Buttons that do nothing on a lit controller suggest a crash the cycle just fixed; a controller with no signs of life on a proven supply is the failed part.

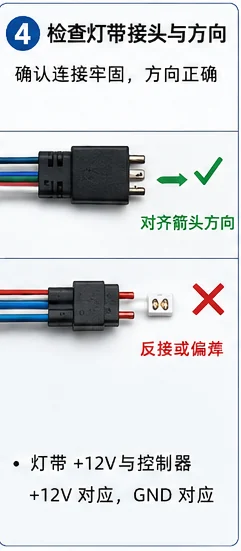

Reseat every low-voltage connector

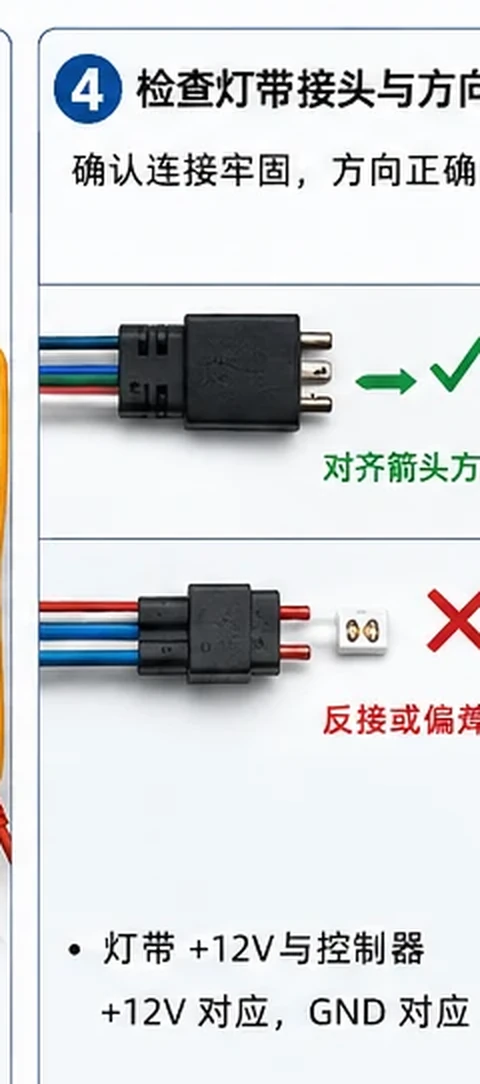

Unplugged, check each junction from controller to strip: the keyed 3- or 4-pin plugs must be fully home with arrows aligned, pins straight, and no green corrosion. Behind-TV connectors loosen with every cable-tidy and dust pass; push each until it clicks and route so gravity does not hang on the joint.

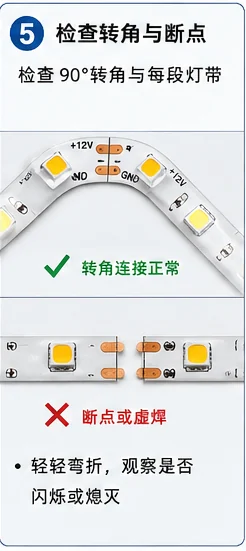

Inspect the first segment and its corner

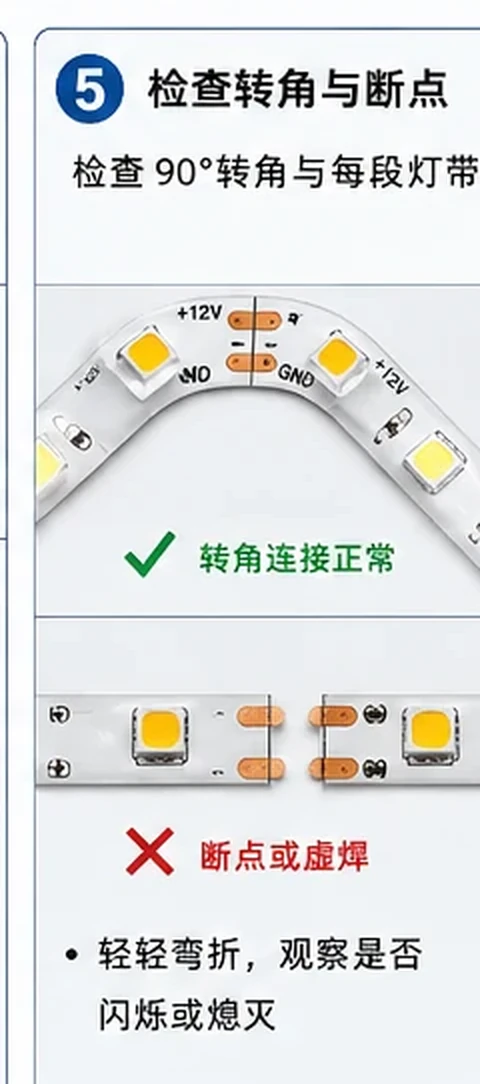

Follow the strip from its input: the first corner fold takes the sharpest bend and the most tension. Look for a lifted section, a crease across the circuit, or pads pulling away at the corner. A strip that lights up to the first corner and dies there has declared its fault location precisely.

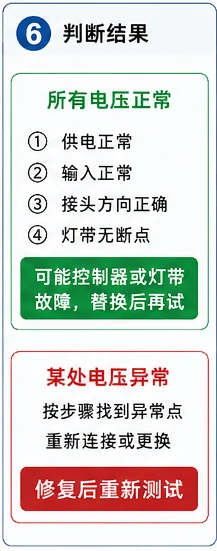

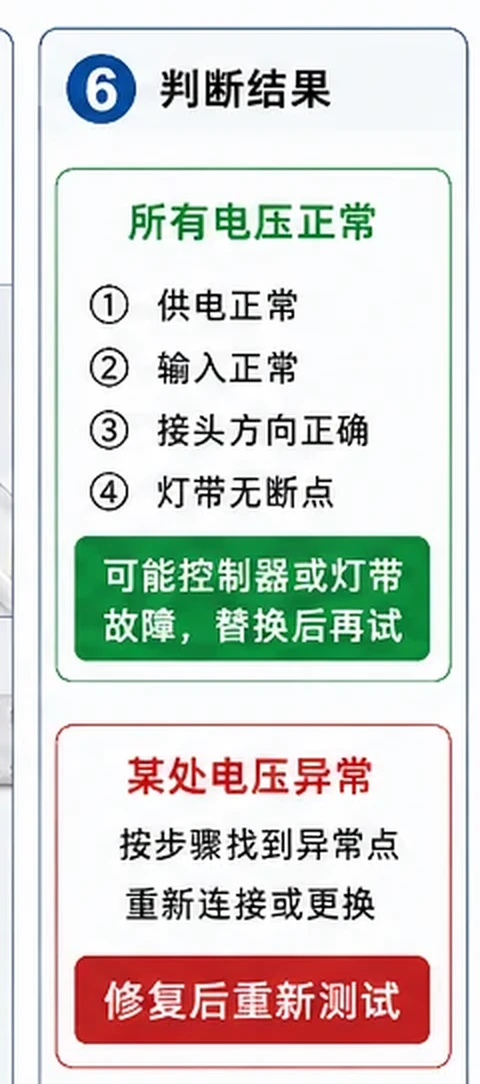

Run a minimal system test
Disconnect extensions, splitters and any second strip; connect just controller and the first strip run on the independent supply, commanding a static color at medium brightness. If the minimal system lights, re-add pieces one at a time until the failure returns — the last piece added is the culprit.
Reading the port's fine print
TV USB ports fall into three tiers: 0.5 A service ports meant for firmware sticks, 1 A media ports, and the occasional 1.5–2 A port on newer sets. A multi-meter backlight at full white can want more than any of them deliver, and the symptoms of a starved kit are characteristic: works at low brightness but dies or browns to warm-white at full, resets when the picture goes bright, or flickers during app updates when the TV borrows the port's budget. The robust configurations are, in order: a wall charger on the same power strip as the TV (lights die with the strip switch), a smart plug slaved to the TV's power state, or — if the TV must feed it — brightness capped to what the port sustains. The port's convenience is real, but it is a loan, not a grant.
Where the money goes on a dead kit
Controllers and USB cables are cheap, generic and worth replacing on suspicion once the supply is proven. The strip is the labor: re-sticking a full perimeter is an hour of careful work, so a strip dead only past its first corner is better repaired at that corner — a solderless joint or a short bridge across the crease — than replaced outright. Save the wholesale replacement for strips failing in multiple places, and route the new one with gentler corner folds so the next failure is not pre-installed.
